Custom Print NFC Smart Label 13.56MHZ NFC Custom Stickers Contactless

Packing Label Print NFC Micro Rfid Tags 213 Smart Label With 3M Stickers

RF Interface (ISO/IEC 14443A)

1. Contactless transmission of data and supply energy (no battery needed)
2. Operating distance: up to 100 mm (depending on field strength and antenna geometry)
3. Operating frequency: 13.56 MHz
4. Fast data transfer: 106 kbit/s
5. High data integrity: 16-bit CRC, parity, bit coding, bit counting
6. True anticollision
7. 7 byte serial number (cascade level 2 according to ISO/IEC 14443-3)

Quick Details

Chip: 213/215/216

Antenna Material:        Aluminum

Substrate Material:       PET PVC

Antenna Thickness:     0.03mm

Substrate Thickness:    0.03mm

Frequency:                     14.0+/-0.5MHz

Reading Distance:         0---10CM

Description

Environmental Parameters:

Ideal Storage Temp:+15℃～+25℃, 20%RH～45%RH

Tolerant Storage Environment:-25℃～+50℃, 20%RH～90%RH

Tolerant Working Environment:-25℃～+65℃, 20%RH～90%RH

Withstand voltage:≦5N/m㎡

Resistance to bending capacity:≧φ20mm

Specifications

Protocol: ISO14443A

Frequency:  13.56MHz

Write Endurance:  100, 000 cycles

Data Retention:10 years；

Baudrate: 106K bits/s

the size we have now is below.other sizes can be customized

Custom Print NFC Smart Label

13.56MHZ NFC Custom Stickers

NFC Smart Label 13.56MHZ

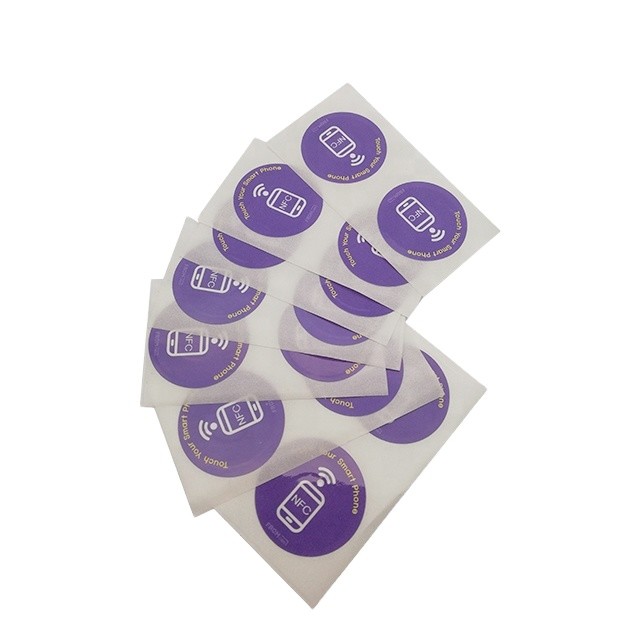

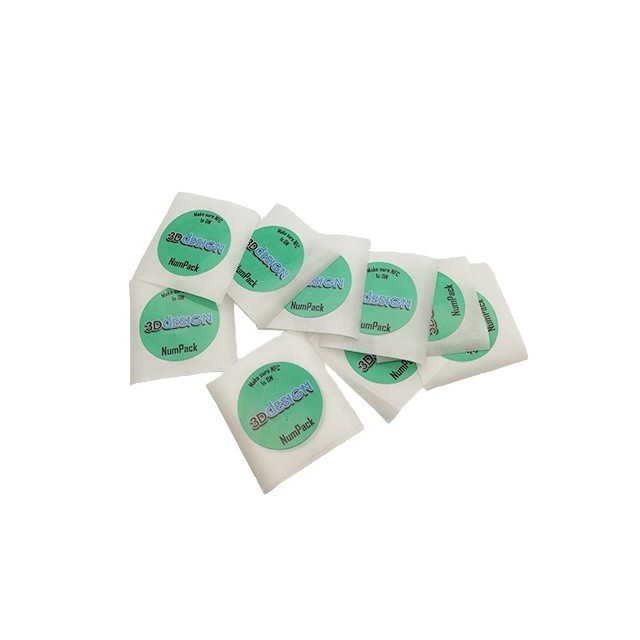

Custom Print NFC Smart Label 13.56MHZ NFC Custom Stickers Contactless Images
