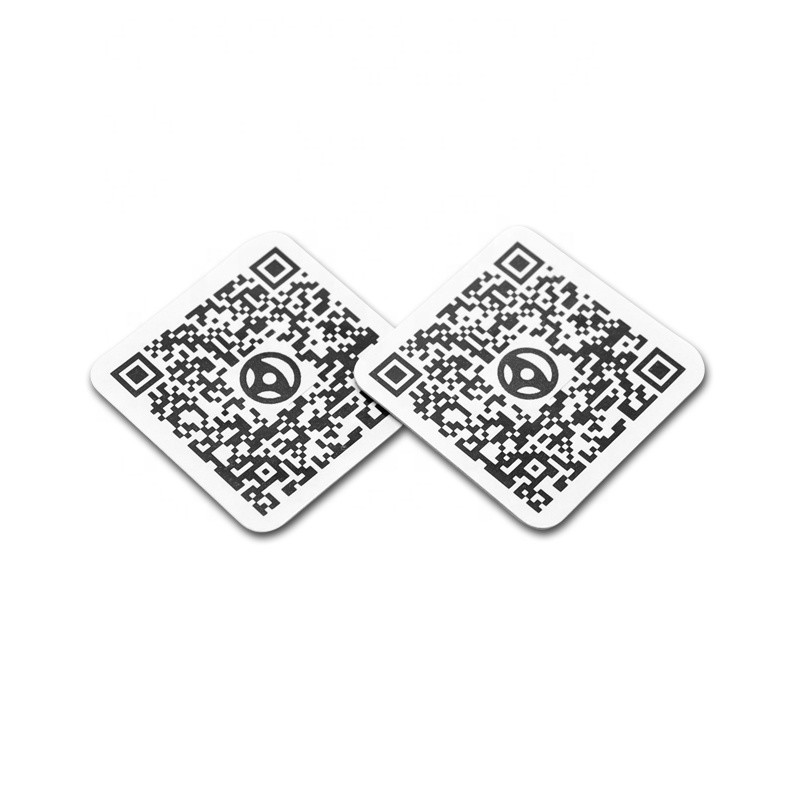

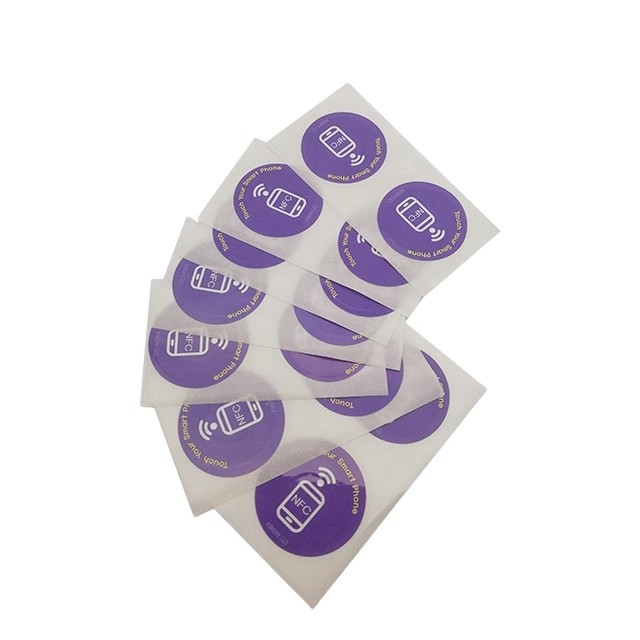

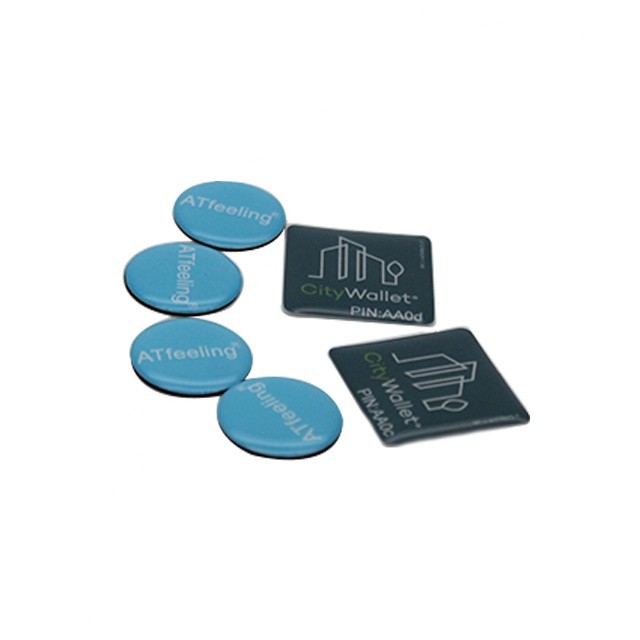

Micro Waterproof Micro NFC s Smart Label Stickers For Restaurant And Smart Home Used
NFC posters are an excellent way of gaining social media followers and increasing engagement on social media platforms likeFacebook, Twitter and Instagram. A compelling call-to-action combined with an intriguing poster helps NFC posters bring in maximum results.
RF Interface (ISO/IEC 14443A)
1. Contactless transmission of data and supply energy (no battery needed)
2. Operating distance: up to 100 mm (depending on field strength and antenna geometry)
3. Operating frequency: 13.56 MHz
4. Fast data transfer: 106 kbit/s
5. High data integrity: 16-bit CRC, parity, bit coding, bit counting
6. True anticollision
7. 7 byte serial number (cascade level 2 according to ISO/IEC 14443-3)
NFC label stickers Quick Details
Chip: 213/215/216
Antenna Material: Aluminum
Substrate Material: PET PVC
Antenna Thickness: 0.03mm
Substrate Thickness: 0.03mm
Frequency: 14.0+/-0.5MHz
Reading Distance: 0---10CM
Description
Environmental Parameters:
Ideal Storage Temp:+15℃～+25℃, 20%RH～45%RH
Tolerant Storage Environment:-25℃～+50℃, 20%RH～90%RH
Tolerant Working Environment:-25℃～+65℃, 20%RH～90%RHWithstand voltage:≦5N/m㎡
the size we have now is below.other sizes can be customized
| size(mm) | size (mm) |
| 44x24 R2 | dia | 30 |
| 50X45 R3 | | 40 |
| 60X30 R2 | | 25 |
| 74X21 R2 | | 28 |
| 50X50 R2 | | |
| 47X27 R3 | | |
| 109X10 R2 | | |
| 36X22 R2 | | |
| 100X14 R5 | | |
| 85X54 R3 | | |
| 55X20 R2 | | |
| 42x26 R2 | | |
| 100X100 R4 | | |
| 56X18 | | |
| 15X30 | | |
| 41X25 | | |
| 35X18 | | |
| 45X45 | | |
| 16X50 | | |
| 12.7X73 | | |
| 101X25 | | |
| 51x51 | | |
